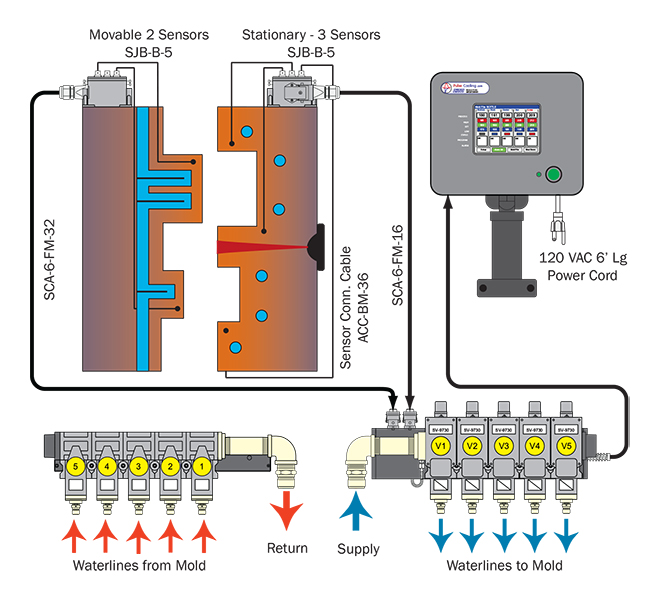

PULSECOOLING 5 ZONE CONTROL - DOS

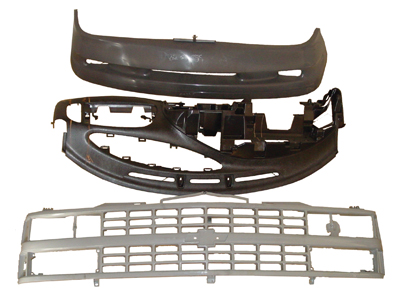

Low Temperature Molding - Melt provides the heat for start up and maintains desired mold surface temperature

• High Volume Molding
• Hot Runner Molds
• Family Molds
• Up to 160° F

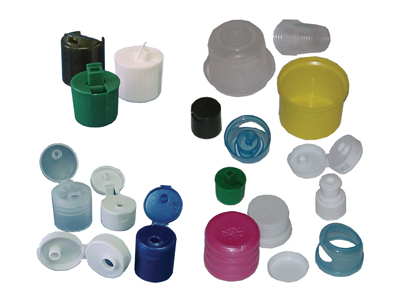

Mid - High Temperature Molding - When an external heating source is applied for start up and/or to maintain desired mold surface temperature

• Thin Wall Molding
• Off Balance geometry
• Precision Molding
• Used with Pulse Heating Programs
• Heating may be applied be electric heators or thermolator
• Up to 240°F

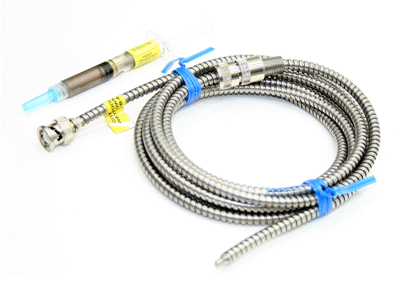

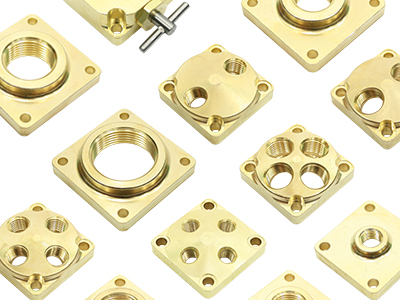

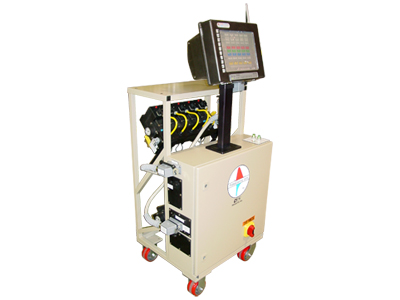

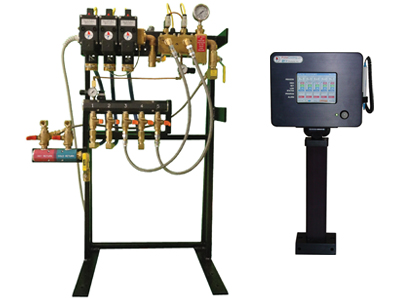

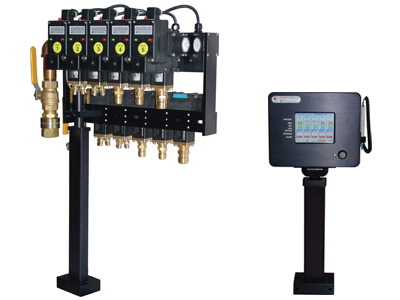

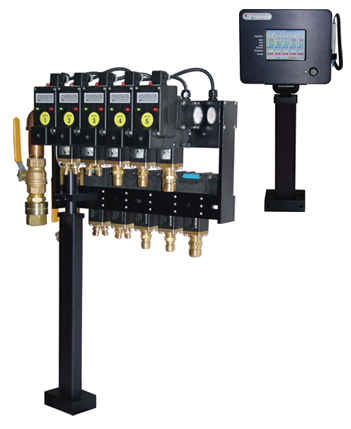

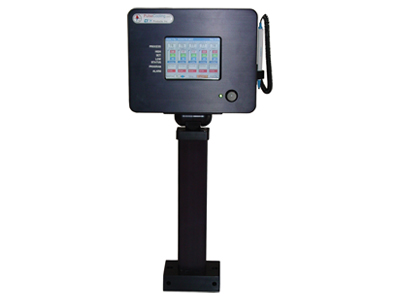

CONTROLLER

• High Volume Molding
• DOS base
• 5” Touchscreen
• Storage for 64 mold files
• Over/under setpoints w/ alarm
• Alarm relay output
• Machine Sync
• 9 Cooling programs
1. On/Off Cooling
2. Sync Cooling
3. Thick Parts
4. Pulse Advance
5. Time Cooling
6. Single Sensor Cooling
7. Auto Cooling
8. Hi-Temp Cooling
9. PID Cooling

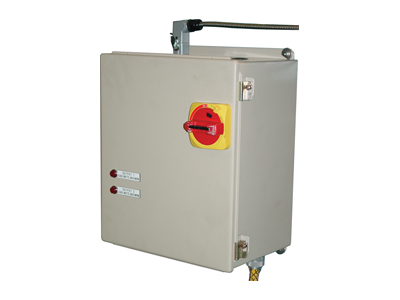

• Optional electric heating (2 Programs)
1. Fast Heating
2. PID Heating

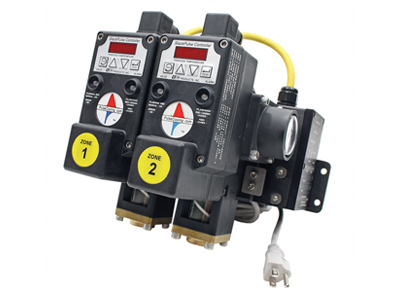

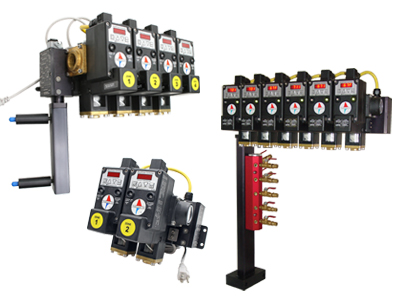

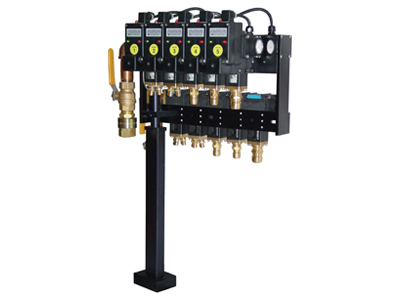

VALVE BANK

Supply: StackValve (NPT/BSPT/BSPP)

• 24V AC/DC Diaphragm Valve
• DIN Connector
• Electric Purge Button
• ½” – 1 ½ Supply from cooling source
• 1/8” – 1 ¼” Supply to process
• Fast Responding
• Integrated screen
• Self-Cleaning orifice
• RotoFlow Visual flow turbine
• Robust glass-filled Nylon body
• Up to 160° F

Return: StackFlow Ball valve (NPT/BSPT/BSPP)

• Ball Type Valve
• 1/8” – 1 ¼” return from process
• ½” – 1 ½” return to cooling source
• Integrated screen
• Robust glass-filled Nylon body
• Up to 160°F
