MANIFOLD

INLINE™ MANIFOLDS

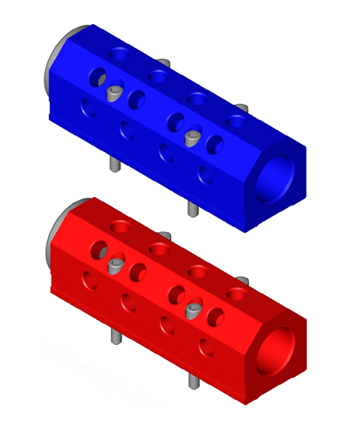

The original five sided anodized aluminum manifold allows pre-plumbing and pre-testing of all mold circuts. Excellent for fast mold changes. Standard aluminum manifolds are available in blue (supply) and red (return).

  • Number of Ports: Up to 8 on any one of 5 sides.
  • Inlet Port Sizes: 3/4", 1", 1-1/4", 1-1/2", and 2"
  • Outlet Port Sizes: 1/8", 1/4", 3/8", 1/2", 3/4", 1" and 1-1/4" with regard to supply size.
  • Pressure/Temperature ratings: 3000 PSI @ 300°F.
  • Furnished with end cap and stainless steel mounting screws.
  • Each supply or return manifold can have up to 40 ports.
Flow Restrictions
Price List
SIMILAR PRODUCTS
Card image cap

DIVIDED

Same quality manifold as the Inline™ Manifold, with the supply and return contained in one manifold. Standard manifolds are anodized red and blue with divider.

MORE INFO
Card image cap

SIDELINE

Same quality manifold as the Inline™ and Inline™ divided manifold, with the supply ports on the side. This allows the use of the aluminum manifold where space is limited.

MORE INFO
Card image cap

BOTTOMLINE

Same quality manifold as our other manifolds, mounting flush to the mold so no hoses are involved. This is an ideal aluminum manifold to incorporate into a new mold design.

MORE INFO
